In the early days of Amateur Packet Radio, it was necessary to use an expensive "Terminal Node Controller" (TNC) with specialized hardware. Those days are gone. You can now get better results at lower cost by connecting your radio to the "soundcard" interface of a computer and using software to decode the signals.

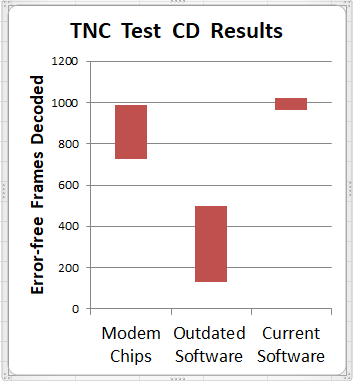

Why waste $200 and settle for mediocre receive performance from a 1980's technology TNC using an old modem chip? Dire Wolf decodes over 1000 error-free frames from Track 2 of the WA8LMF TNC Test CD, leaving all the hardware TNCs, and first generation "soundcard" modems, behind in the dust.

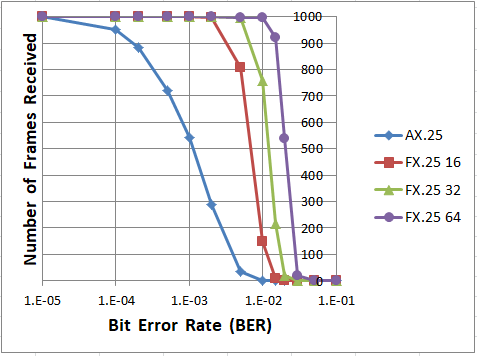

Dire Wolf includes FX.25 which adds Forward Error Correction (FEC) in a way that is completely compatible with existing systems. If both ends are capable of FX.25, your information will continue to get through under conditions where regular AX.25 is completely useless. This was originally developed for satellites and is now seeing widespread use on HF.
Version 1.7 adds IL2P, a different method of FEC with less overhead but it is not compatible with AX.25.

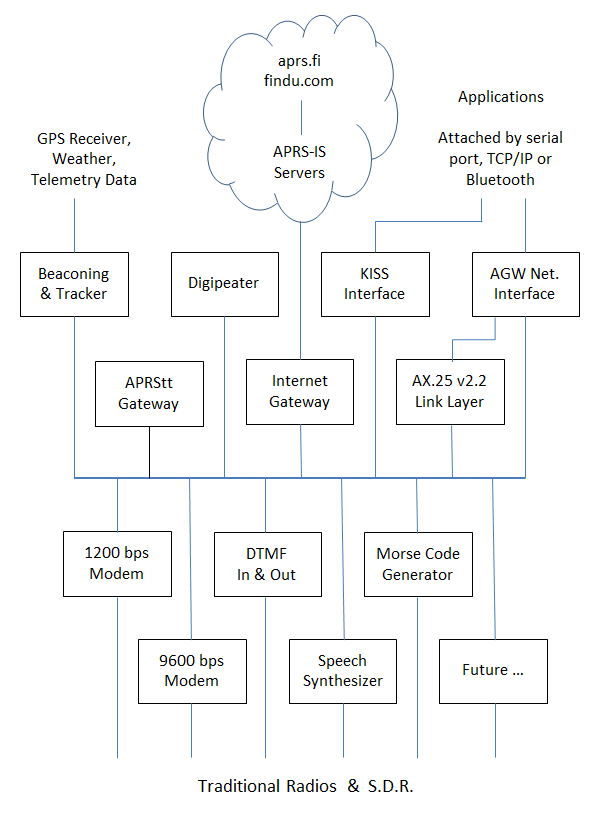

Dire Wolf is a modern software replacement for the old 1980's style TNC built with special hardware.
Without any additional software, it can perform as:
- APRS GPS Tracker
- Digipeater
- Internet Gateway (IGate)
- APRStt gateway
It can also be used as a virtual TNC for other applications such as APRSIS32, Xastir, APRS-TW, YAAC, PinPoint APRS, UI-View32,UISS, Linux AX25, SARTrack, Winlink Express (formerly known as RMS Express, formerly known as Winlink 2000 or WL2K), BPQ32, Outpost PM, Ham Radio of Things, Packet Compressed Sensing Imaging (PCSI), and many others.
-
Beaconing, Tracker, Telemetry Toolkit.
Send periodic beacons to provide information to others. For tracking the location is provided by a GPS receiver. Build your own telemetry applications with the toolkit.
-
APRStt Gateway.
Very few hams have portable equipment for APRS but nearly everyone has a handheld radio that can send DTMF tones. APRStt allows a user, equipped with only DTMF (commonly known as Touch Tone) generation capability, to enter information into the global APRS data network. Responses can be sent by Morse Code or synthesized speech.
-
Digipeaters for APRS and traditional Packet Radio.
Extend the range of other stations by re-transmitting their signals. Unmatched flexibility for cross band repeating and filtering to limit what is retransmitted.
-
Internet Gateway (IGate).
IGate stations allow communication between disjoint radio networks by allowing some content to flow between them over the Internet.
-
Ham Radio of Things (HRoT).
There have been occasional mentions of merging Ham Radio with the Internet of Things but only ad hoc incompatible narrowly focused applications. Here is a proposal for a standardized more flexible method so different systems can communicate with each other.
-
AX.25 v2.2 Link Layer.
Traditional connected mode packet radio where the TNC automatically retries transmissions and delivers data in the right order.
-
KISS Interface (TCP/IP, serial port, Bluetooth) & AGW network Interface (TCP/IP).
Dire Wolf can be used as a virtual TNC for applications such as APRSIS32, Xastir, APRS-TW, YAAC, PinPoint APRS, UI-View32,UISS, Linux AX25, SARTrack, Winlink Express (formerly known as RMS Express, formerly known as Winlink 2000 or WL2K), BPQ32, Outpost PM, Ham Radio of Things, Packet Compressed Sensing Imaging (PCSI), and many others.
-
Uses computer's "soundcard" and digital signal processing.
Lower cost and better performance than specialized hardware.
Compatible interfaces include DRAWS, UDRC, SignaLink USB, DMK URI, RB-USB RIM, RA-35, DINAH, SHARI, and many others.
-
Modems:
300 bps AFSK for HF
1200 bps AFSK most common for VHF/UHF
2400 & 4800 bps PSK
9600 bps GMSK/G3RUH
AIS reception
EAS SAME reception
-
DTMF ("Touch Tone") Decoding and Encoding.
-
Speech Synthesizer interface & Morse code generator.
Transmit human understandable messages.
-
Compatible with Software Defined Radios such as gqrx, rtl_fm, and SDR#.
-
Concurrent operation with up to 3 soundcards and 6 radios.
- Runs on Windows, Linux (PC/laptop, Raspberry Pi, etc.), Mac OSX.
Latest Development Version ("dev" branch)
Power Point presentations -- Why not give a talk at a local club meeting?
Youtube has many interesting and helpful videos. Searching for direwolf tnc or direwolf aprs will produce the most relevant results.
Go to the releases page. Download a zip file with "win" in its name, unzip it, and run direwolf.exe from a command window.
You can also build it yourself from source. For more details see the User Guide in the doc directory.
Note that this has changed for version 1.6. There are now a couple extra steps.
First you will need to install some software development packages using different commands depending on your flavor of Linux. In most cases, the first few will already be there and the package installer will tell you that installation is not necessary.
On Debian / Ubuntu / Raspbian / Raspberry Pi OS:
sudo apt-get install git
sudo apt-get install gcc
sudo apt-get install g++
sudo apt-get install make
sudo apt-get install cmake
sudo apt-get install libasound2-dev
sudo apt-get install libudev-dev
sudo apt-get install libavahi-client-dev
Or on Red Hat / Fedora / CentOS:
sudo yum install git
sudo yum install gcc
sudo yum install gcc-c++
sudo yum install make
sudo yum install alsa-lib-devel
sudo yum install libudev-devel
sudo yum install avahi-devel
CentOS 6 & 7 currently have cmake 2.8 but we need 3.1 or later. First you need to enable the EPEL repository. Add a symlink if you don't already have the older version and want to type cmake rather than cmake3.
sudo yum install epel-release
sudo rpm -e cmake
sudo yum install cmake3
sudo ln -s /usr/bin/cmake3 /usr/bin/cmake
Then on any flavor of Linux:
cd ~
git clone https://www.github.com/wb2osz/direwolf
cd direwolf
git checkout dev
mkdir build && cd build
cmake ..
make -j4
sudo make install
make install-conf
This gives you the latest development version. Leave out the "git checkout dev" to get the most recent stable release.
For more details see the User Guide in the doc directory. Special considerations for the Raspberry Pi are found in Raspberry-Pi-APRS.pdf
Results will vary depending on your hardware platform and operating system version because it depends on various volunteers who perform the packaging. Expect the version to lag significantly behind development.
sudo apt-get update
apt-cache showpkg direwolf
sudo apt-get install direwolf
Results will vary depending on your hardware platform and operating system version because it depends on various volunteers who perform the packaging. Expect the version to lag significantly behind development.
sudo yum check-update
sudo yum list direwolf
sudo yum install direwolf
Read the User Guide in the doc directory. It is more complicated than Linux.
If you have problems, post them to the Dire Wolf packet TNC discussion group.
You can also install a pre-built version from Mac Ports. Keeping this up to date depends on volunteers who perform the packaging. This version could lag behind development.
sudo port install direwolf
Here are some good places to ask questions and share your experience:
The github "issues" section is for reporting software defects and enhancement requests. It is NOT a place to ask questions or have general discussions. Please use one of the locations above.
